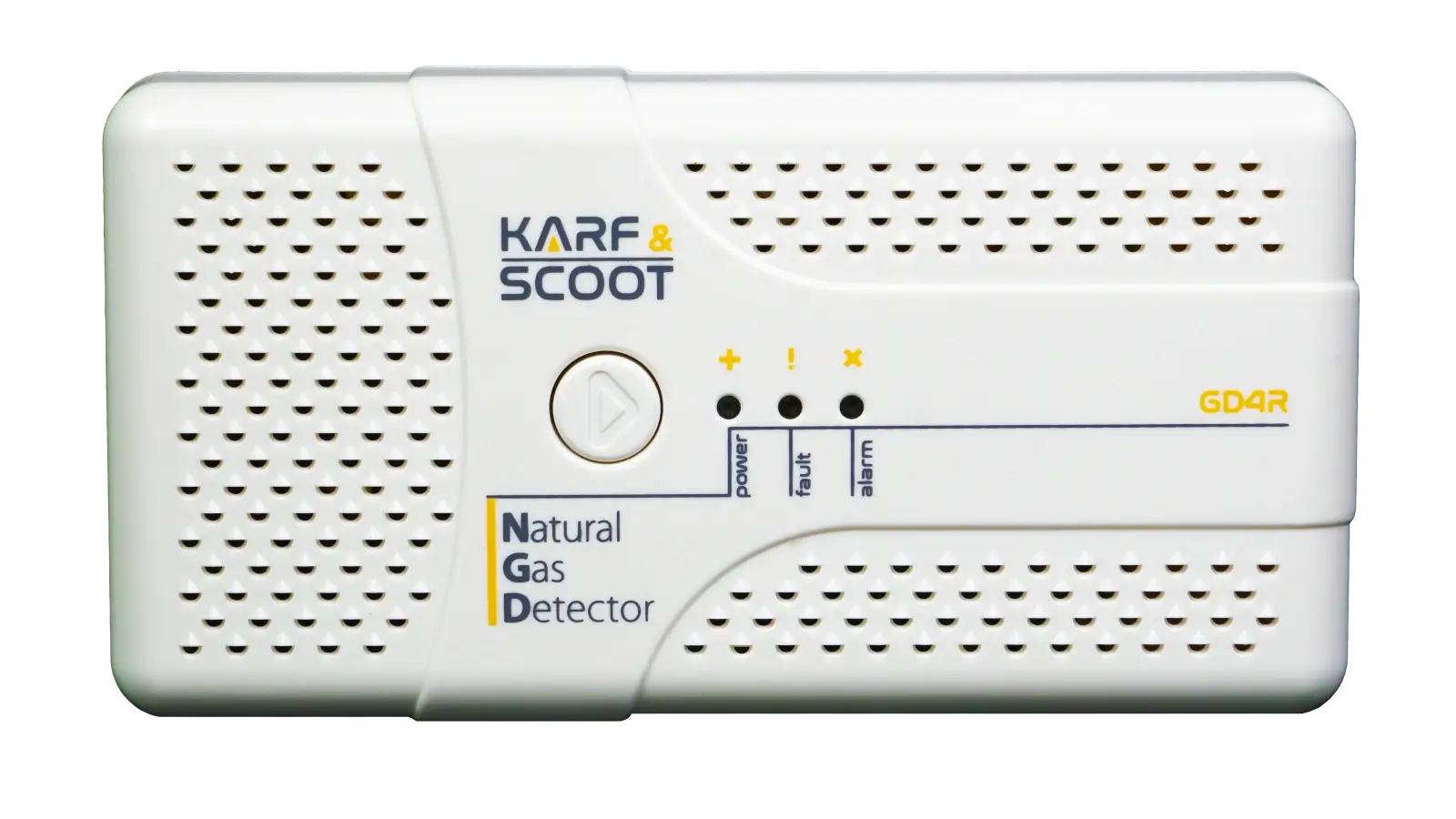

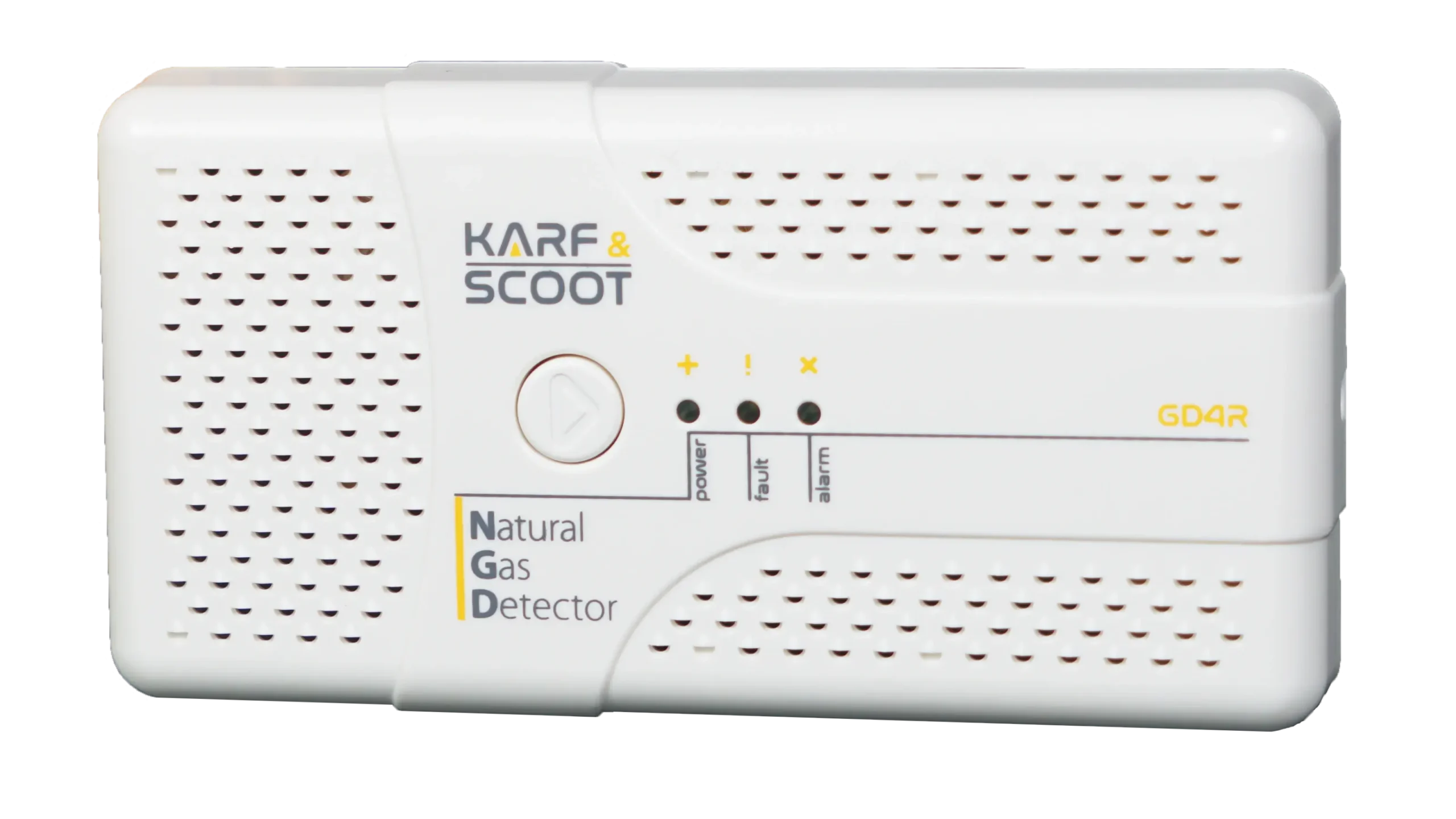

GD4R FLAMMABLE GAS DETECTOR

Karf&Scoot GD4R is a Flammable Gas Detector to detect LPG or natural gas leaks. The detector gives an audible alarm warning when the gas concentration rises above the dangerous level.

Technology for Safety

Karf&Scoot GD4R is a Flammable Gas Detector to detect LPG or natural gas leaks. The detector gives an audible alarm warning when the gas concentration rises above the dangerous level.

Quick Specs

Easily mounted with only 2 screws
Can use 110V ~ 230V electricity
Replaceable professional pellistor sensor
3 Notification LEDs
EN 50194 Certified

Downloads

Relay Outputs

Turn on and off the electrical devices without the need for external control panel.

EN 50194 Certified

Designed in accordance with the standard of flammable gas detection devices in domestic environments.

Catalytic Sensor

Comparing to semiconductor sensors, catalytic (pellistor) sensors are long-lasting and more determined.

Audible Alarm

It guarantees that you will be aware of the danger of gas leak.

Designed and Manifactured by
Industrial Gas Detection Expert Karf&Scoot

RELAY OUTPUTS

Thanks to the digital relay outputs, it can turn on and off the electrical devices of your preference without the need for external control panel. For example, in case of an alarm, you can automatically turn off your natural gas connection with a solenoid valve.

EN 50194 CERTIFIED

GD4R Gas Detectors has been designed in accordance with the standard of flammable gas detection devices in domestic environments and similar premises. It is certified by a globally recognized independent organization.

CATALYTIC SENSOR (Pellistor)

It has a long-lasting professional replaceable sensor that can detect with 1% sensitivity in the range of 0-100% LEL. Comparing to semiconductor sensors, catalytic (pellistor) sensors are long-lasting and more determined.

AUDIBLE ALARM

With its high sound output power of 95db, it guarantees that you will be aware of the danger of fire-explosion in case of a possible alarm.

Technical Specifications

Power Consumption 2.5W
Sensor Type Catalytic (Pellistor)
Detected Gas Methane or LPG
Operating Temperature -10°C ~ +50°C
Storage Temperature -10°C ~ +60°C
Relative Humidity ≤ 95% RH

Alarm Volume +85dB at 1 meter
Protection Degree IP42
Body Material ABS v0 Non-Flammable
Sensor Lifespan 7 Years
Weight 315 gr
Power 12VDC or 110-230V~ 50-60Hz ±10%
